Corrugated metal and profiled sheets for roof and wall

We can offer you trapezoidal sheeting for roofs and walls in various lengths and colours.

Overview of trapezoidal sheets

Here you will find a list of the trapezoidal sheet metal available to us. We also sell trapezoidal sheeting for roofs and walls in a wood look. These are often used in agriculture.

Corrugated sheet wall 01 - cross-section

Wall: 100-WA-01

Request Details

Nominal thickness mm	Weight kg/m²
0,50	4,97
0,60	5,82
0,63	6,26
0,70	6,79
0,75	7,45
0,88	8,74
1,00	9,93
1,13	11,22
1,25	12,41

Corrugated sheet wall 02 - cross-section

Wall: 100-WA-02

Request Details

Nominal thickn mm	Weight kg/m²
0,50	4,67
0,63	5,89
0,75	7,01
0,88	8,22
1,00	9,35

Trapezoidal sheet Wall 03 - Cross-section

Wall: 100-WA-03

Request Details

Nominal thickn. mm	Weight kg/m²
0,50	4,39
0,60	5,27
0,70	6,15
0,88	7,73

Wall: 100-WA-04

Request Details

Nominal thickn. mm	Weight kg/m²
0,50	4,91
0,63	6,18
0,75	7,36
0,88	8,64
1,00	9,81
1,13	11,09
1,25	12,27

Trapezoidal sheet Wall 05 - cross-section

Wall: 100-WA-05

Request Details

Nominal thickn. mm	Weight kg/m²
0,50	4,46
0,63	5,62
0,75	6,69
0,88	7,85
1,00	8,92

Wall: 100-WA-06

Request Details

Nominal thickness mm	Weight kg/m²
0,50	4,63
0,60	5,55
0,70	6,48
0,88	8,14

Wall: 100-WA-07

Request Details

Nominal thickn. mm	Weight kg/m²
0,50	4,74
0,63	5,97
0,75	7,11
0,88	8,34
1,00	9,48
1,25	10,71

Wall: 100-WA-08

Request Details

Nominal thickn. mm	Weight kg/m²
0,50	5,23
0,60	6,28
0,70	7,33
0,88	9,21

Wall: 100-WA-09

Request Details

Nominal thickn. mm	Weight kg/m²
0,50	5,36
0,63	6,76
0,75	8,04
0,88	9,44
1,00	10,72

Wall: 100-WA-10

Request Details

Nominal thickn. mm	Weight kg/m²
0,50	5,45
0,63	6,90
0,75	8,30
0,88	9,70
1,00	11,00

Wall: 100-WA-11

Request Details

Nominal thickn. mm	Weight kg/m²
0,70	7,45

Wall: 100-WA-12

Request Details

Nominal thickn. mm	Weight kg/m²
0,50	4,91
0,63	6,18
0,75	7,36
0,88	8,64
1,00	9,81
1,25	12,27

Wall: 100-WA-13

Request Details

Nominal thickn. mm	Weight kg/m²
0,50	3,93
0,60	4,71

Wall: 100-WA-14

Request Details

Nominal thickn. mm	Weight kg/m²
0,50	4,35
0,60	5,22
0,70	6,09

Profiled plank cladding

Request Details

Roof: 100-DA-01

Request Details

Nominal thickn. mm	Weight kg/m²
0,50	4,97
0,60	5,82
0,63	6,26
0,70	6,79
0,75	7,45
0,88	8,74
1,00	9,93
1,13	11,22
1,25	12,41

Roof: 100-DA-02

Request Details

Nominal thickn. mm	Weight kg/m²
0,50	4,67
0,63	5,89
0,75	7,01
0,88	8,22
1,00	9,35
1,13	10,56
1,25	11,68

Roof: 100-DA-03

Request Details

Nominal thickn. mm	Weight kg/m²
0,50	4,39
0,60	5,27
0,70	6,15
0,88	7,73

Roof: 100-DA-04

Request Details

Nominal thickn. mm	Weight kg/m²
0,50	4,91
0,63	6,18
0,75	7,36
0,88	8,64
1,00	9,81
1,13	11,09
1,25	12,27

Roof: 100-DA-05

Request Details

Nominal thickn. mm	Weight kg/m²
0,50	4,46
0,63	5,62
0,75	6,69
0,88	7,85
1,00	8,92
1,13	10,08
1,25	11,15

Roof: 100-DA-06

Request Details

Nominal thickn. mm	Weight kg/m²
0,50	4,79
0,60	5,75
0,70	6,70
0,88	8,43

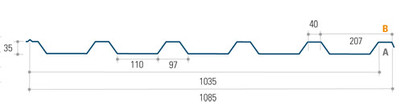

Trapezoidal sheet roof 07 - cross-section

Roof: 100-DA-07

Request Details

Nominal thickn. mm	Weight kg/m²
0,50	4,63
0,60	5,55
0,70	6,48
0,88	8,14

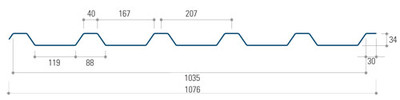

Roof: 100-DA-08

Request Details

Nominal thickn. mm	Weight kg/m²
0,50	4,74
0,63	5,97
0,75	7,11
0,88	8,34
1,00	9,48
1,25	10,71

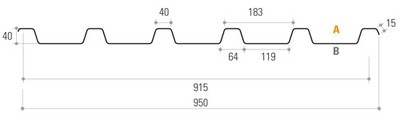

Roof: 100-DA-09

Request Details

Nenndicke mm	Gewicht kg/m²
0,50	5,23
0,60	6,28
0,70	7,33
0,88	9,21

Roof 100-DA-10

Request Details

Nominal thickn. mm	Weight kg/m²
0,50	5,36
0,63	6,76
0,75	8,04
0,88	9,44
1,00	10,72
1,25	13,41

Roof: 100-DA-11

Request Details

Nominal sheet roof mm	Weight kg/m²
0,50	4,79
0,60	5,75
0,70	6,70
0,88	8,43

Roof: 100-DA-12

Request Details

Nominal thickn. mm	Weight kg/m²
0,50	4,91
0,63	6,18
0,75	7,36
0,88	8,64
1,00	9,81
1,25	12,27

Roof: 100-DA-13

Request Details

Nominal thickn. mm	Weight kg/m²
0,60	6,38
0,63	6,70
0,70	7,45
0,75	7,98

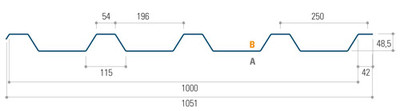

Roof: 100-DA-14

Request Details

Nominal thickn. mm	Weight kg/m²
0,50	4,91
0,63	6,18
0,75	7,36
0,88	8,64
1,00	9,81
1,25	12,27

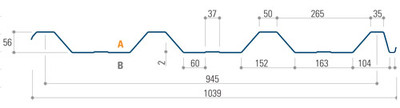

Roof: 100-DA-15

Request Details

Nominal thickn. mm	Weight kg/m²
0,50	5,19
0,63	6,54
0,75	7,79
0,88	9,14
1,00	10,38
1,25	12,98

Roof tile sheet: 100-DA-16

Request Details

Nominal thickn. mm	Weight kg/m²
0,50	5,00

Large range of trapezoidal sheet metal

We can offer you the entire range of trapezoidal sheetingon request. These are available in the dimensions you require and in almost any RAL colour. Of course, we can also offer you special items and construction site returns.
