Insulated Wall Panels

For commercial buildings and coolrooms, Panel Sell is able to supply insulated panels quickly and in large quantities.

Insulated wall panels are essentially two profiled metal sheets with an insulated material in between.

Types of insulated wall panels

Wall panels with open fixing joints

Lengths: 2m-13.5m

Thickness
mm

Steel sheet
thickness
extern./intern.
mm

Weight
kg/m²

U-value W/(m²K)

300.3/0.36.580,54
0.4/0.48.30
0.5/0.59.98
400.3/0.37.020,43
0.4/0.48.74
0.5/0.510.42
500.3/0.37.460,36
0.4/0.49.18
0.5/0.510.82
600.3/0.37.900,32
0.4/0.49.62
0.5/0.511.30
800.3/0.38.780,26
0.4/0.410.50
0.5/0.512.18
1000.5/0.512.840,205
Sandwich opens with open fixing joints - cross section

Wall panels with secret fixing

Lengths: 2m-13.5m

Thickness
mm

Steel sheet
thickness
extern./intern.
mm

Weight
kg/m²

U-value W/(m²K)

300.3/0.37,580.54
0.4/0.48.44
0.5/0.510.16
400.3/0.38.020.43
0.4/0.48.88
0.5/0.510.66
500.3/0.38.460.36
0.4/0.49.32
0.5/0.511.04
600.3/0.38.900.32
0.4/0.49.76
0.5/0.511.48

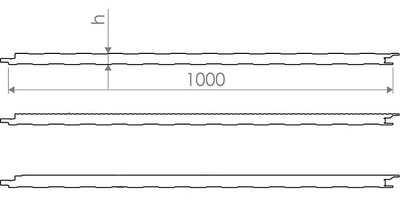

Sandwich panels with secret fixing joints - cross-section

Rockwool sandwich wall panels:

Length
m
Thickness
mm
Weight
kg/m²
U-value
W/(m²K)
From 1.6m
to 14m
5014.600.79
6015.600.67
8017.600.52
10019.600.42
12021.600.35
14023.600.30
16025.600.27
18027.600.24
20029.600.22
Sandwich panels mineral wool - side view

Rockwool Wall panels:

Length
m
Thickn.
mm
Weight
kg/m²
U-Value
W/(m²K)
From 1.6m
to 14m
5010.600.69
6013.600.59
8015.600.45
10017.600.37
12019.600.31
14021.600.27
16023.600.24
18025.600.21
20027.600.19
Rockwool sandwich panels for walls with secret fixing joints- cross-section

Cold room panels

Steel sheet thickness: 0.5mm / 0.5mm

Length
m
Thickn.
mm
Weight
kg/m²
U-value
W/(m²K)
From 2m
to 14m
8011.960.255
10012.840.205
12013.720,167
15015.040.134
18015.920.122
20017.240.105
Technical illustration of cold room panel

​Technical details of insulated wall panels

Standardly, the outer sheets are made from steel. However, for special purposes, stainless steel or aluminium can be incorporated. The standard sheet thicknesses range between 0.5mm to 1.0mm. Therefore, it can be produced in other strengths as required. The wall panels commonly have the Eurobox-marked profile on the sheet. However, smooth and micro-ribbed surface finishes are also possible.

The standard core insulation of these composite wall panels is rigid polyuerethane foam (PU/PUR). Increasingly more popular are panels with a core insulation consisting of rockwool or polyisocyanurate foam (PIR) due to fire-protection requirements. The panels have fire-rating classes and consits of non-combustible materials.

The wall panels are assembled together in what is known as a "tongue and groove" system. The panel attachment can come as open or secret fixing. In open-fixing panels, screws that are mounted are visible, whereas secret-fixing joints conceal the screws when mounted.

On request, we can offer the full range of insulated wall panels, manufactured and tailored to your requirements in length, thickness and most RAL-colour tones. Of course, we are also able to offer you special offers and surplus stock at low prices.

Profiles

As a stabilising element, the outer and inner shell of the wall panels usually have a so-called profile. You can have all wall panels produced with the following profiles:

The default profile is called Eurobox. It is the classic profile used for industrial buildings and is mostly used in a white-grey color (RAL 9002).

Wall panels with a micro-rib profile feature a slight corrugation of the surface. This gives the panel, and thus the entire building, a noble look.

A very special profile in our range is the double-lamination. This combines a micro-lamination with a larger corrugation. When combining different colors, industrial buildings in particular can be given a unique and appealing appearance.

There is also the possibility to produce sandwich wall panels without a profile, i.e. "plain". Please note that the thickness of the sheet must be greater than that of the profiled panels in order to ensure the same stability.
